Stans NoTubes Arch S1 Wheels 27. 5 27.5/650b Boost Shimano Hub Wider rim width for more stability with larger tires2mm wider and 16 grams lighter than Rapid 28Rim profile optimized for 2.25” - 2.50” tires
Stans NoTubes Arch S1 Wheels 27. 5 27.5/650b Boost Shimano Hub Wider rim width for more stability with larger tires2mm wider and 16 grams lighter than Rapid 28Rim profile optimized for 2.25” - 2.50” tires
Stans Notubes

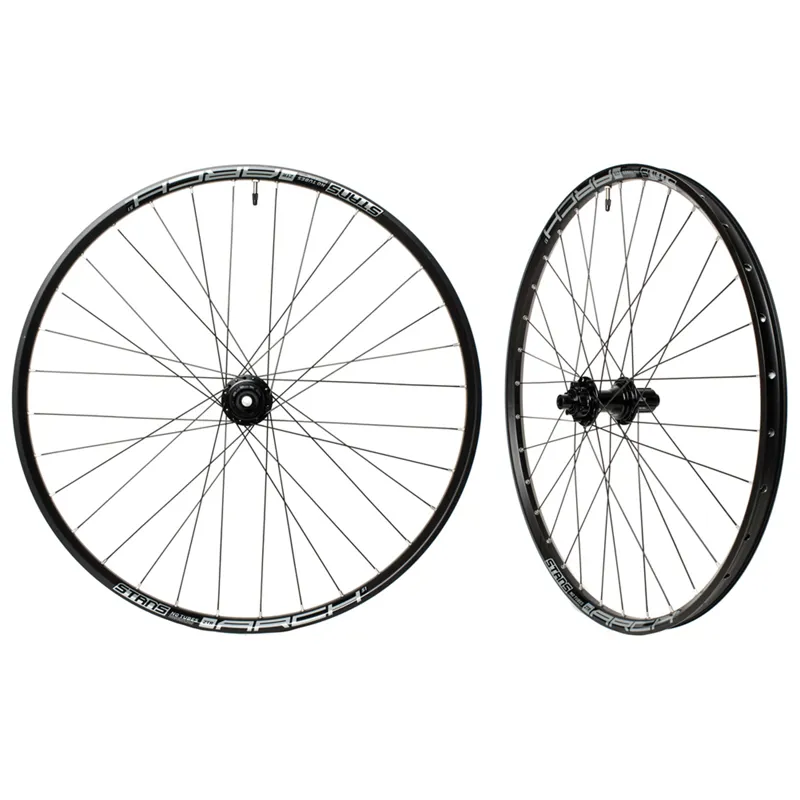

Stans NoTubes Arch S1 Wheels 27. 5 27.5/650b Boost Shimano Hub

£420.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Stans NoTubes Arch S1 Wheels 27. 5 27.5/650b Boost Shimano Hub

Brand:Stans Notubes

Code:850.WS1AR7006

FEATURES

Durable and lightweight aluminum construction
Wider rim width for more stability with larger tires2mm wider and 16 grams lighter than Rapid 28Rim profile optimized for 2.25” - 2.50” tires

Durable enough to handle the most technical trails, yet light enough to rip XC laps, the Arch S1 is one of our most versatile wheelsets yet. This new Arch is designed to provide unheard of traction and control when running 2.25’’ to 2.50’’ tires. With 32-spokes front and rear, 6061 alloy rims, stainless steel rim eyelets, and easily replaceable standard spokes, the Arch S1 is made for maximum durability. The Arch S1 is built on our faster-engaging, CNC-machined Neo hubs. For wherever you ride the new Arch S1 will be ready to handle it all.

S1 wheelsets do not include extra end caps.

Tubeless tape installed, requires additional valve stems.
Sizing Information
Rim Internal Width: 26.0mm                          Rim Weight: 472g (27.5")
Rim External Width: 29.7mm Wheelset Weight: 1,850g (27.5”)
Rim Depth: 17.3mm Front Wheel Weight: 865g (27.5")
Spokes: Sapim Race Black 2.0/1.8/2.0mm    Rear Wheel Weight: 985g (27.5")
Nipples: Secure Lock Brass Silver Nipples    ERD: 566mm (27.5")
Hub: Neo with Durasync TRTO: 584x26 (27.5")
Hole Count: 32-hole, 32-hole ISO: 27.5"x29.7mm / 29"x29.7mm
Rim Material: 6061 Alloy Tape: 27mm
Hub Color: Black Max Spoke Tension: 125kgf (1225N)
Rim Color: Black Max Rider Weight: 230lbs (105 kilo)
Brakes: Disc Max Pressure with 2.20" Tire: 39psi
Valve: 35mm Presta Max Pressure with 2.50" Tire: 36psi
